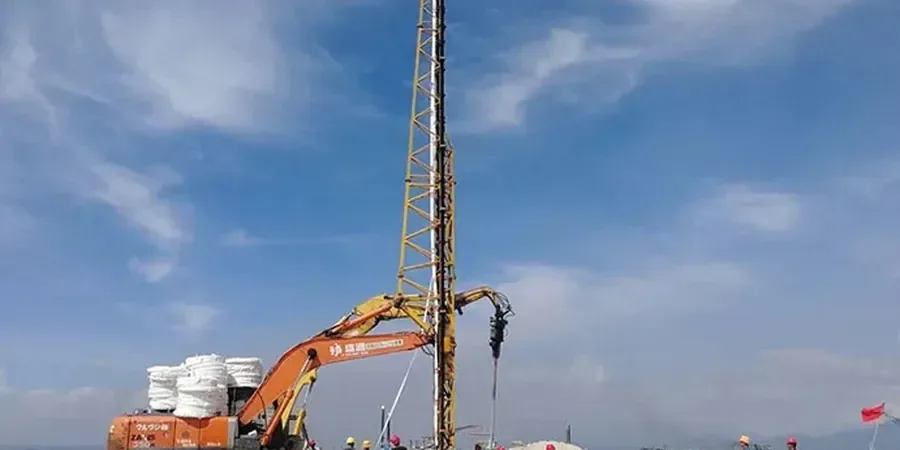

Preloading Design (Without Surcharge) in Manchester

Manchester's rapid 19th-century expansion was built over the low-lying floodplain of the River Irwell and its tributaries. The city's industrial boom pushed construction onto soft alluvial clays and peat deposits that still underlie large parts of the urban core. Preloading design without surcharge is the method we apply when the site's own weight or a temporary fill can drive consolidation without adding extra load. For projects near the Bridgewater Canal or the old docklands, we first run a consolidation test to establish the coefficient of consolidation and the pre-consolidation pressure. Only with those numbers can we predict the settlement rate for a given fill height.

Preloading design without surcharge in Manchester's soft alluvial clays demands a precise consolidation coefficient from undisturbed samples.

Scope of work in Manchester

A common mistake we see from contractors working in Manchester's clay-filled basins is assuming that preloading without surcharge simply means piling fill on the ground and waiting. That approach ignores the drainage path length and the soil's layered stratigraphy. The soft clays around Salford Quays often contain thin silt partings that accelerate vertical drainage if the preload is designed to match the natural drainage pattern. We always verify the field permeability with in-situ tests and correlate that with lab data. Without that step, the preloading design without surcharge can underestimate the time to reach 90% consolidation by months. Our team uses the Terzaghi one-dimensional consolidation theory as the baseline, then refines it with the actual void ratio and compression index from undisturbed samples.

Preloading Design (Without Surcharge) in Manchester

Parameter	Typical value
Coefficient of consolidation (cv)	1.2 to 4.8 m²/year
Pre-consolidation pressure (σ'p)	45 to 95 kPa
Compression index (Cc)	0.22 to 0.45
Void ratio (e0)	1.1 to 1.8
Field permeability (k)	1×10⁻⁹ to 8×10⁻⁹ m/s

Critical ground factors in Manchester

The hydraulic settlement platform we mobilise for preloading design without surcharge in Manchester consists of a series of vibrating-wire piezometers and pneumatic settlement cells embedded in the fill. We install them in clusters across the footprint, typically at three depths per location. The real risk lies in the bottom peat layer present below the upper clay in many Manchester sites. That peat can undergo secondary compression long after primary consolidation ends. If the preloading design without surcharge ignores the secondary compression index, the finished slab may keep settling for years. We monitor the pore pressure dissipation curve daily and extend the preload period if the rate drops below the target.

This service complements our laboratory testing work for a complete project analysis.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Applicable standards: BS 5930:2015 Code of practice for ground investigations, Eurocode 7 - Geotechnical design (BS EN 1997-1:2004), BS 1377-5 Standard test methods for one-dimensional consolidation, BS 1377-5 Methods of test for soils — compressibility and permeability

Our services

We provide the following services to support preloading design without surcharge in Manchester:

Consolidation testing (oedometer)

One-dimensional consolidation tests on undisturbed samples to determine cv, Cc, and σ'p. We run incremental loading with 24-hour stages per BS 1377-5.

Field settlement monitoring

Installation of pneumatic settlement cells and in-place inclinometers. Weekly readings during the preload period to compare actual versus predicted settlement.

Pore pressure profiling

Vibrating-wire piezometers at multiple depths to track excess pore pressure dissipation. Data used to back-calculate the field coefficient of consolidation.

Quick answers

What is preloading design without surcharge?

It is a Improvement method that uses a temporary fill load equal to the final design load to accelerate consolidation of soft clay. No additional surcharge load is placed above the working level.

How long does preloading take for Manchester's soft clays?

Typical durations range from 3 to 8 months depending on the clay thickness, drainage path, and the required degree of consolidation. Our consolidation tests give a site-specific estimate.

What is the cost range for preloading design without surcharge in Manchester?

The design fee including lab testing and monitoring plan typically falls between £620 and £1,580. The total project cost depends on fill volume, monitoring duration, and site access.

Can preloading without surcharge handle peat layers?

Peat undergoes significant secondary compression that preloading alone may not fully address. We run long-term creep tests to estimate post-construction settlement and may recommend wick drains if the peat layer is thick.

What data do you need from the client to start the design?

We need borehole logs showing the soil profile to at least 5 metres below the proposed fill base, plus undisturbed tube samples from each clay layer. A site plan with existing and proposed ground levels helps us set the fill height.
